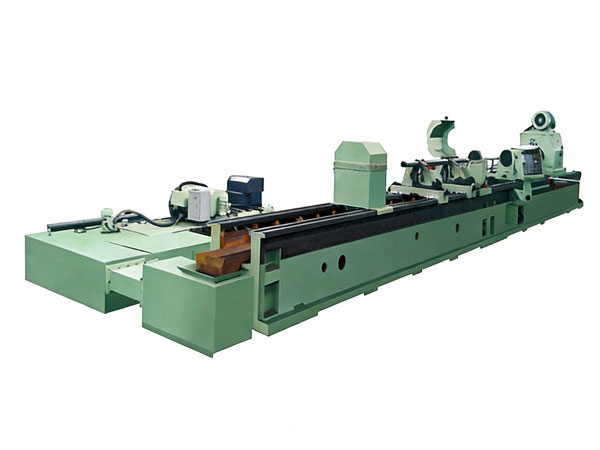

2MSK2125/2MSK2135 CNC Strong Honing Machine

Machine Tool Applications:

♦ Suitable for honing and polishing cylindrical deep-hole workpieces.
♦ Examples include precision pipe fittings such as various hydraulic cylinders and gas cylinders.
♦ Capable of honing and polishing workpieces with stepped holes.

Machining Accuracy and Process:

♦ The machined hole diameter accuracy can reach IT8-IT9 grade or higher.
♦ Surface roughness can achieve Ra0.2-0.4μm.
♦ Local honing can correct the taper, ellipticity, and local diameter errors of the workpiece.
♦ Direct power honing can be performed on some cold-drawn steel tubes.

► The 2MSK2125 and 2MSK2135 CNC deep-hole power honing machines are ideal pieces of equipment with high precision and efficiency.

Machine Tool Configurations:

♦ These CNC deep-hole power honing machines are equipped with a KND CNC system and AC servo motors. The grinding spindle box features stepless speed regulation.
♦ The honing head reciprocates via a sprocket and chain system, allowing precise control of the honing position.
♦ Dual linear guide rails are used, providing high service life and accuracy.
♦ The honing head employs hydraulic constant-pressure expansion, ensuring stable honing force from the abrasive strips to maintain the workpieces roundness and cylindricity.
♦ The honing pressure can be adjusted as needed, with high and low-pressure control settings, enabling easy switching between rough and finish honing from the control panel.

Other machine tool configurations are as follows:

♦ Renowned brands are used for hydraulic valves, automatic lubrication stations, etc.

► Additionally, the CNC system, linear guide rails, hydraulic valves, and other configurations of these CNC deep-hole power honing machines can be selected or specified according to user requirements.

Main Technical Parameters:

CNC

• Beijing KND (Standard Configuration); SIEMENS 828 Series, FANUC, etc., are optional and can be customized according to workpiece requirements.
