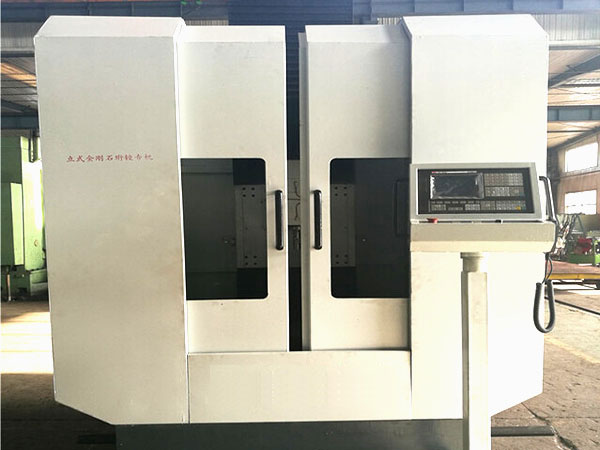

2MSK2105 Vertical Diamond Reamer Special Machine Tool

Category ：
Customized deep hole machine tool
Hits ： 126

Consult Now

Detailed Introduction

Basic process performance of machine tools:

♦ This machine tool can complete the reaming of inner holes.

♦ During processing, the workpiece is fixed on the worktable, and the tool rotates and feeds.

♦ The coolant enters the cutting area through two hoses, cools and lubricates the cutting area, and carries away the chips.

The machining accuracy of the machine tool:

♦ Depending on the tool, the aperture accuracy is IT7-8 and the surface roughness is Ra0.1~0.8.

Basic technical parameters of machine tools：

Range of hinge hole diameter	Φ20~Φ50mm	Up and down travel of hinge hole	900mm
Main spindle speed range	5~500r/min（stepless）	Main motor power	4KW（servo motor）
Feed motor	2.3KW（15NM）（servo motor）	Range of feed rate	5~1000mm/min（stepless）
Workbench dimensions	700mmX400mm	Horizontal travel of workbench	600mm
Longitudinal travel of workbench	350mm	Cooling system flow rate	50L/min
Maximum size of workpiece	600X400X300
